USB TO RS422 ADAPTERS (FULL SPEED)
Description

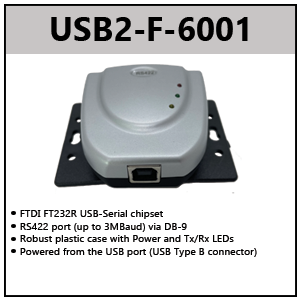

The USB2-F-6001 provides a simple method of adapting RS422 serial devices to a USB port. This is accomplished by incorporating the industry standard FTDI FT232R USB to Serial bridge chip.
Each USB2-F-6001 adapter contains a small internal electronic circuit board which utilises the FTDI FT232R, mounted inside a rugged plastic enclosure capable of withstanding industrial temperature ranges. The integrated electronics also include RS422 level shifters and TXD/RXD LEDs to provide a visual indication of data traffic through the adapter.
Flexible mounting allows the USB2-F-6001 to be used in a variety of applications, from a portable adapter to accompany a laptop to permanent installations in industrial, commercial and retail locations.
The enclosure incorporates a standard USB-B client connector for connection to an upstream host or hub port. RS422-level signals, are available on an industry-standard DE-9P (DB9) connector. The maximum RS422-level data rate is 3 Mbps.
The USB2-F-6001 adapter require USB device drivers, available free from https://www.connectiveperipherals.com, which are used to make the USB2-F-6001 appear as a Virtual COM Port (VCP). This allows existing serial communications software, such as HyperTerminal, to exchange data through the USB2-F-6001 to a legacy RS422 peripheral device.
Features:
- Adds one RS422 serial port by connecting to USB
- Easy plug & play installation and RS422 device connection
- Works with USB 1.1 & 2.0 Host and Hub ports
- Industry Standard FTDI chip set & device drivers for maximum compatibility
- Microsoft Windows® WHQL-certified, Mac OS X, Linux and Windows CE device drivers downloadable for free
- Installs as a standard Windows COM port
- COM Port Number assignment is configurable
- FIFO: 128 byte transmit buffer, 256 byte receive buffer
- RS422 data signals: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND
- Powered by USB port. No external power adapter required
- Serial port speed up to 3 Mbps \
- Serial Communication Parameters
o Parity: None, Even, Odd
o Data bits: 7, 8
o Flow control: RTS/CTS , X-ON/X-OFF, None
- One DE-9P (DB9) male connector
- LEDs indicate USB Enumeration, RxD, TxD for monitoring port status & easy diagnostics
- High-temperature plastic enclosure
- Operating temperature of -40°C to +85°C
- USB cable of 0.9 meter included
- CE / FCC Approved
Document
Part Number | Document Type | Version | File |
USB2-F-6001 Full-Speed USB to 1-Port RS422 Adapter | Datasheet | 1.1 | Download |
USB2-F-6001 | Quick Start Guide | 1.1 | Download |
Downloads
Driver |
Download Virtual COM Port (VCP) Drivers for Windows, Mac OS and Linux |
Order Information
SKU | Ports | Housing | Connector |
USB2-F-6001 | 1 | ABS | USB-B |
