USB Type C Full Speed cable

$23.30
SKU USBC-FS-RS232-100-DB9
Connector
Length
Signal Level
Description

USBC-FS-RS232-100-DB9 & USBC-FS-RS232-0V-1800-WE

The USB to RS232 converter cable family provides a simple way to connect devices with an RS232 interface to USB.

The Type-C USB connector allows direct connection to the latest computers featuring Type C ports without requiring adapters.

USBC-FS-UART-5V-3.3V-1800-PH & USBC-FS-UART-5V-5V-1800-WE

The USB to Serial (TTL level) converter cable family provides a simple way to connect devices with TTL level interfaces to USB. The cables are available with a variety of connector types on the TTL end as well as different signal levels and power supply output voltages (available on some models)

The Type-C USB connector allows direct connection to the latest computers featuring Type C ports without requiring adapters.



Document
Part Number Document Type Version File
USBC-FS-RS232-100-DB9 Datasheet  1.2 Download
USBC-FS-RS232-0V-1800-WE Datasheet  1.2 Download
DS_USBC-FS-UART-5V-3.3V-1800-PH Datasheet 1.1 Download
DS_USBC-FS-UART-5V-5V-1800-WE Datasheet  1.1 Download
USB TYPE C SERIAL CABLES Brochure  Download
All Products Drivers Installation Guide  Download
Downloads
Driver

Download Virtual COM Port (VCP) Drivers for Windows, Mac OS and Linux

Download D2XX Drivers

Order Information
SKU Connector  Length  Signal Level
USBC-FS-RS232-100-DB9 DB-9 0.1m RS232

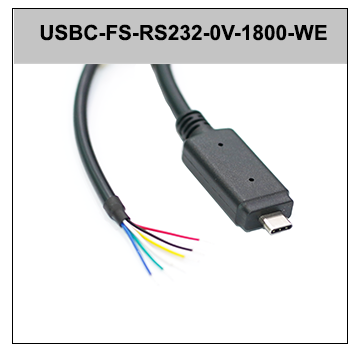

USBC-FS-RS232-0V-1800-WE Wire End 1.8m RS232

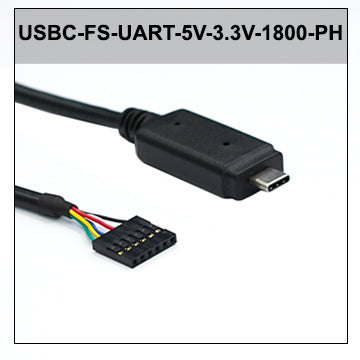

USBC-FS-UART-5V-3.3V-1800-PH 6-Way Pin Header 1.8m 3.3V
USBC-FS-UART-5V-5V-1800-WE WireEnd 1.8m 5V
