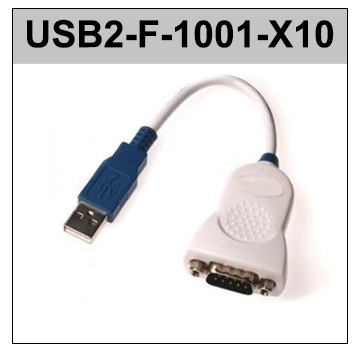

USB to RS232 cable with FT231X Chipset

$15.00
SKU USB2-F-1001-X10
Description

USB Speed v1.1

The USB2-F-1001-X10 is the latest and most cost effective USB to RS232 converter cable. The USB2-F-1001-X10 cable utilises the minimum number of components required for a basic USB - RS232 converter designed using the FT231XS.

Features:

  • Looks and works great with MAC, PC and Linux platforms
  • Installed as standard Windows COM portusing FTDI royalty free drivers
  • Entire USB protocal handled by the FTDI FT231XS chip
  • Data transfer rates from 300 baud to 250 kilo-baud at RS232 voltage levels
  • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
  • Fully assisted hardware or X-On / X-Off software handshaking.
  • 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput
  • Adjustable receive buffer timeout.
  • ESD protection on RS232 I/Os exceeding
    • ±15kV IEC1000-4-2 Air Gap Discharge
    • / ±15kV for Human Body Mode (HBM)
    •  ±8kV IEC1000-4-2 Contact Discharge
  • ESD protection on USB lines exceeding:
    • ±2kV for Human Body Mode (HBM)
    • ±200V for Machine Mode (MM)
    • ±500V for Charged Device Mode (CDM)
  • Integrated MTP-ROM for storing USB VID, PID, serial number and product description strings
  • Low operating and USB suspend current
  • Low USB bandwidth consumption / USB 2.0 Full Speed compatible
  • -40°C to 85°C extended operating temperature range
  • CE and FCC approved
  • RoHS compliant
  • Supplied loose packed in an anti-static bag
Document
Part Number Document Type Version File
Chipi-X Cable Datasheet 1.1 Download
All Products Drivers Installation Guide 1.0 Download
Downloads
Driver

Download Virtual COM Port (VCP) Drivers for Windows, Mac OS and Linux

Order Information

SKU

Connector

Length

USB2-F-1001-X10 DE-9 0.1m
