The S1-A-7001 is a RS232 to CANbus adapter which operates at up to 1Mbps on both RS232 and CANbus interfaces.
Each S1-A-7001 contains a small internal electronic circuit board mounted inside of a plastic case capable of withstanding industrial temperature ranges. The integrated electronics include a Microchip PIC with the ECAN controller. LEDs give a visual indication of the CANbus status.
The S1-A-7001 requires an external power supply with an input voltage range of +6VDC to +15VDC.
The enclosure incorporates a DE-9S connector that allows connection to an RS232 device in DTE configuration by using a straight-through cable. CANbus signals are available on an industry-standard DE-9P connector conforming to the CAN-in-Automation (CiA) DS102-2 pin-out. The maximum CANbus data rate is 1Mbps. RS232 data rates range from 2400bps to 460.8Kbps and 1Mbps.
USB2-F-7001 and USB2-F-7101

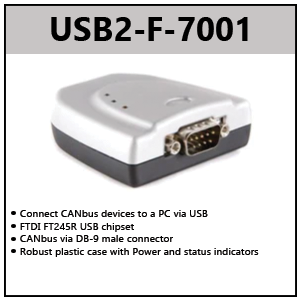

The USB2-F-7001 and USB2-F-7101 is a USB to CANbus adapter which incorporates the FTDI FT245R USB to FIFO interface IC device. The adapter provides a fast, simple way to connect CANbus devices to a host PC with a USB port.
Each USB2-F-7001 and USB2-F-7101 contains a small internal electronic circuit board mounted inside of a plastic case capable of withstanding industrial temperature ranges. The integrated electronics include a Microchip PIC with the ECAN controller. USB2-F-7001 and USB2-F-7101 does not require a power supply. It is powered from the USB connection. USB2-F-7001 and USB2-F-7101 requires 150mA and must be connected directly to a USB Host port, or a self-powered USB hub (i.e. with an external power supply). Bus-powered USB hubs are not supported since they cannot provide the required current.
Flexible mounting allows the USB2-F-7001 to be used in a variety of applications, from a portable adapter to accompany a laptop to permanent installations in industrial and commercial locations.
The enclosure incorporates a standard USB-B device connector for connection to an upstream host or hub port. CANbus signals are available on an industry-standard DE-9P connector conforming to the CAN-in-Automation (CiA) DS102-2 pin-out. The maximum CANbus data rate is 1Mbps.
In addition, USB2-F-7101 features optical isolation between CANbus controller and transceiver.
Feel free to browse through the corresponding datasheet for more information.
|Part Number||Document Type||Version||File|
|S1-A-7001||Quick Start Guide||1.1||Download|
|USB2-F-7001 / USB2-F-7101||Datasheet||1.4||Download|
|USB2-F-7001 / USB2-F-7101||Quick Start Guide||1.3||Download|
USB2-F-7001 / USB2-F-7101
USB2-F-7001 / USB2-F-7101
Application Note CAN Plus Custom CAN Data Rates
Application Note CAN Plus Message Filtering
|USB2-F-7001 / USB2-F-7101||API Guide||1.1||Download|
|USB2-F-7001 / USB2-F-7101||Technical Note||1.1||Download|
USB2-F-7001 / USB2-F-7101 Driver (Installation instructions found in the README.TXT file contained within the .zip file)
USB2-F-7001 / USB2-F-7101 C++ DLL Demo Utility (GUI) (Not compatible with 64-bit Windows)
|USB2-F-7001 / USB2-F-7101 C++ DLL Demo (Command Line)||Download|
USB2-F-7001 /USB2-F-7101 DLL LIB Header
|USB2-F-7101||1||ABS||USB-B w/ Isolation|
