USB TO RS422/RS485 ADAPTERS (FULL SPEED)

$41.89
SKU ES-U-2001-S
Ports
Housing
Connector
Description

Our USB to RS422/RS485 adapters are an easy way to connect RS422 or RS485 devices to a USB port on your computer.

Each port can be set as RS422 or RS485 allowing devices using either of these protocols to be connected. Each port has options such as termination and biasing and indication LEDs for Tx and Rx for easy diagnostics.

With a variety of port numbers and enclosure styles and easy to install drivers for a range of operating systems, these adapters are ideal for adding one or more RS422/RS485 ports to your computer.

  • Based on the renowned FTDI USB-Serial chipsets and drivers
  • Microsoft Windows® WHQL-certified, macOS and Linux drivers
  • Each RS422/RS485 port can appear as a Virtual Com Port allowing easy use with existing application programs
  • Multi-port units create a separate COM port for each port with separate settings (such as baud rate and flow control) per port
  • Ports can also be accessed using the FTDI D2xx DLL functions
  • Signals (note that modes and signals may vary between models)
    • RS422: TxD+, TxD-, RxD+, RxD-, GND, RTS+, RTS-, CTS+, CTS-
    • RS485 4-wire: TxD+, TxD-, RxD+, RxD-, GND
    • RS485 2-wire: Data+, Data-, GND
  • RS422/RS485 signals via DB-9 and/or Terminal Block (depending on model)
  • Automatic Hardware (RTS / CTS) flow control on RS422 models (where signals are available on connector)
  • Software (X-on/X-off) flow control
  • Transmit and Receive LED indicators help to confirm operation and assist in troubleshooting
  • Available in 1, 2, 4, 8 and 16-port versions
  • USB powered or from external/Internal PSU (depending on model)
  • Variety of robust plastic and metal enclosures

Feel free to browse through the corresponding datasheet for more information.

Document
Part Number Document Type Version File
ES-U-2001B ES-U-2001B Manual 2.3 Download
ES-U-2001-S Installation Guide 1.2 Download
ES-U-2001-STB Installation Guide 1.2 Download
ES-U-2001 ES-U-2001 Product Change Notification 1.2 Download
ES-U-2008-M
ES-U-2016-RM
ES-U-2002-M
Manual 2.3 Download
 ES-U-2001-S EOL Notification
Download
 All Products Drivers Installation Guide 1.1
Download

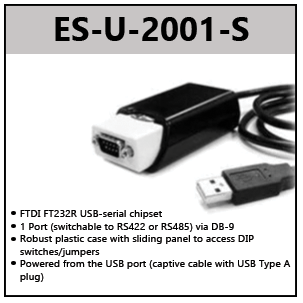

ES-U-2001-S

USB-COMi+2 Products Manual

USB Bus

Compliance  USB 1.0/1.1 compliant, USB 2.0 compatible
 Speed  12 Mbps, full-speed USB
 FIFO 128 byte transmit FIFO
384 receive FIFO



Serial Interface
Port Type
 RS-422/RS-485 selectable
 Number of Ports
 1
 Connectors
DB9 male



Serial Line Protection
ESD Protection 10KV



Serial Port Speed
Baudrate  300 bps to 921.6k bps



Serial Communication Parameters
Data Bits
 5, 6, 7, 8
 Stop Bits
1, 1.5, 2
 Parity
None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF



Serial Signals
RS-422 TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND, RTS-(A), RTS+(B), CTS+(B), CTS-(A)
 RS-485-4 wire TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND
 RS-485-2 wire
Data-(A), Data+(B), GND



Driver Support
OS  Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Linux Kernel 2.4 and up built-in support



Power Supply
Input Bus-powered
No external power adapter required



Mechanical
Chassis  Plastic, ABS



Environmental
Operating Temperature  0 to 55 °C (32 to 131 °F)
 Operating Humidity
 5 to 95% RH
Storage Temperature
-20 to 75 °C (-4 to 167 °F)
Safety Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.
CISPR PUB. 22 and FCC Part 15 Class B.



ES-U-2001-STB

USB-COMi-TB Products Manual Download

USB Bus
Compliance USB 1.0/1.1 compliant, USB 2.0 Compatible
Speed 12 Mbps, full-speed USB
FIFO                    128 byte transmit FIFO 384 receive FIFO





Serial Interface
Port Type  RS-422/RS-485
Number of Ports 1
Connectors 5-pin terminal block





Serial Line Protection
ESD Protection 10KV





Serial Port Speed
Baudrate 300 bp to 921.6k bps





Serial Communication Parameters
Data Bits  5,6,7,8
Stop Bits 1,1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF





Serial Signals
RS-422 TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND
RS-485-4 wire TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND
RS-485-2 wire Data-(A), Data+(B), GND





Driver Support
OS                  Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Linux Kernel 2.4 and up built-in support





Power Supply
Input

Bus-powered

No external power adapter required





Mechanical
Chassis Plastic, ABS





Environmental
Operating Temperature 0 to 55 °C (32 to 131 °F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75 °C (-4 to 167 °F)
Safety Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.
CISPR PUB. 22 and FCC Part 15 Class B.
Downloads
Driver

Download Virtual COM Port (VCP) Drivers for Windows, Mac OS and Linux

Order Information
SKU Ports Housing Connector
ES-U-2001B 1 ABS USB-B

ES-U-2008-M

Din Rail Bracket (DR-201) the rank mount clip is available for sales.
If required, please contact us at sales@connectiveperipherals.com

8 Metal USB-B
ES-U-2016-RM 16 Metal USB-B
ES-U-2001-S   (EOL) 1 ABS USB-A
ES-U-2001-STB 1 ABS USB-A w/ Terminal Block

ES-U-2002-M

Din Rail Bracket (DR-201) the rank mount clip is available for sales.
If required, please contact us at sales@connectiveperipherals.com

2 Metal USB-B
