RS232/RS422/RS485 (NETWORK SERIAL SERVERS)

$300.00
SKU ES-W-3008-RM
Description

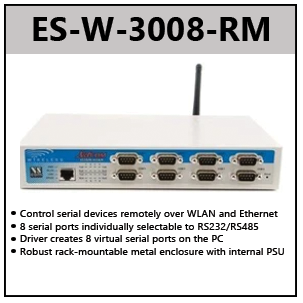

The ES-W-3008-RM WLAN is a network-based serial device server for connecting eight RS232/422/485 devices directly to a network running TCP/IP. This network may be wireless based on IEEE 802.11b/g or wired via 10/100Mbps Ethernet.

Each port can be individually switched to RS232, RS485 or RS422 mode.

The ES-W-3008-RM WLAN comes in a robust metal enclosure with internal mains power supply which is also rack-mountable. It has Tx/Rx LEDs per port for easy diagnostics. It is supplied complete with antenna and power cable.

Features:

  • Controls 8 RS232/422/485 device located virtually anywhere (via WLAN, Ethernet or Internet)
  • Secure encryption on Ethernet and WLAN
  • WLAN Interface IEEE 802.11b/g 54Mb/s
  • Lan interface 10BaseT/100BaseTx Ethernet
  • Driver automatically finds other Serial Server devices in the network
  • Configuration over Driver Panels, serial Port, Telnet, WEB Browser, SNMP
  • High performance serial port supports baud rates of up to 1.843 Mbps (RS422/ RS485) and 921.2 Kbps (RS232)
  • Automatic mode switching between Driver and Raw Mode
  • Supports TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS
  • Supports ART (Automatic Receive Transmit control)
  • RS232/422/485 interface selectable by Switches and Software
  • Complete with antenna and power cable
    Order Information
    Part Number  Ports Housing Connector
    ES-W-3008-RM 8 Metal RJ45
