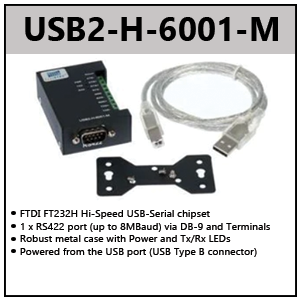

USB TO RS422 ADAPTERS (HIGH SPEED)

Description

Our Hi-Speed USB to RS422 adapters make it quick and simple to connect one or more RS422 devices to a USB port on your computer. These adapters use Hi-Speed USB for reduced latency and higher baud rates on the serial side. Using the multi-port models, you can add up to 16 RS422 ports using only one USB port on the computer.

RS422 is popular for a wide range of control and monitoring and industrial applications. However, most computers don’t have built-in RS422 ports or even slots on the back to add RS422 cards. Connecting via USB offers compatibility across a huge range of computers as well as easier setup.

With a variety of port numbers and enclosure styles and easy to install drivers for a range of operating systems, these adapters are ideal for adding one or more RS422 ports to your computer.

• Based on the renowned FTDI FT232H/FT2232H/FT4232H Hi-Speed USB-Serial chipsets and drivers
• Microsoft Windows® WHQL-certified, macOS, Linux and Windows CE device drivers
• Each RS422 port can appear as a Virtual Com Port allowing easy use with existing application programs
• Multi-port units create a separate COM port for each RS422 port with separate settings (such as baud rate and flow control) per port
• Ports can also be accessed using the FTDI D2xx DLL functions
• Compact and robust design in a variety of metal and plastic enclosure styles
• RS422 via DB-9 Male connector (and terminal block on 1- and 2-port metal models)
• DB-9 RS422 signals: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND
• Automatic Hardware (RTS / CTS) and software (X-on/X-off) flow control
• Transmit and Receive LED indicators help to confirm operation and assist in troubleshooting
• Available in 1, 2, 4, 8 and 16 port versions
• 1, 2 and 4-port models powered from the USB port (no external power needed)
• Optional 5V power out
  • Via terminal block (on 1 and 2-port metal models)
  • Switchable onto CTS-line of DB-9 (on 4, 8 and 16-port metal models)
• USB 2.0 Hi-Speed (compatible with all USB ports including USB3)
• Wall mount brackets included (1, 2, 4, 8 and 16 port versions)
• -40°C to +85°C extended operating temperature range
• CE / FCC approved

Feel free to browse through the corresponding datasheet for more information.
