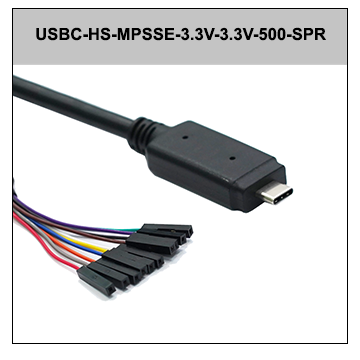

USB TYPE C High Speed MPSSE

$36.80
SKU USBC-HS-MPSSE-3.3V-3.3V-500-SPR
Length
Signal Voltag
Vcc output voltage
Description

The Hi-Speed Type C USB to MPSSE cables can be used to bridge USB to a variety of protocols including SPI, I2C, or JTAG at 3.3V logic levels.


The Type-C USB connector allows direct connection to the latest computers featuring Type C ports without requiring adapters.

The cable has an FTDI FT232H integrated into the USB connector which handles all of the USB signaling and protocols. The FT232H includes an MPSSE serial engine which gives it the ability to emulate synchronous serial protocols. The use of the MPSSE libraries requires that FTDI's D2XX drivers are installed.

The SPI / I2C / JTAG end of the 0.5m cable has ten single-pole female receptacles. These provide access to the ADbus lines which are used for the SPI / I2C / JTAG signals, as well as GND and VCC.

The VCC wire provides 3.3V DC or 5V DC (depending on model) allowing external circuits to be powered.

Document
Part Number Document Type Version File
DS_USBC-HS-MPSSE Datasheet  1.3 Download
USB TYPE C SERIAL CABLES Brochure  Download
All Products Drivers Installation Guide  1.1 Download



Downloads
Driver

Download D2xx Driver

Download VCP Driver

Order Information
SKU Length  Signal Voltage Vcc output voltage
USBC-HS-MPSSE-3.3V-3.3V-500-SPR 0.5m 3.3V 3.3V
USBC-HS-MPSSE-5V-3.3V-500-SPR 0.5m 3.3V 5V
